Technical Details

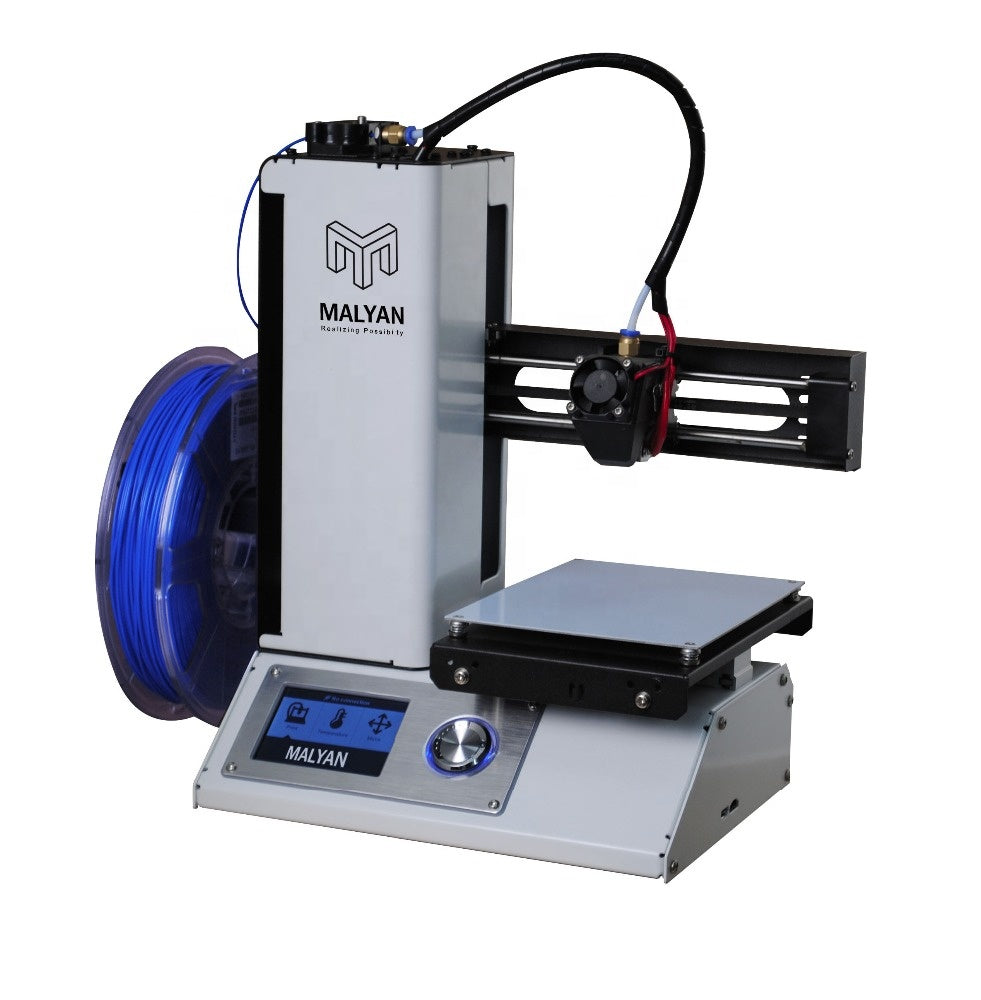

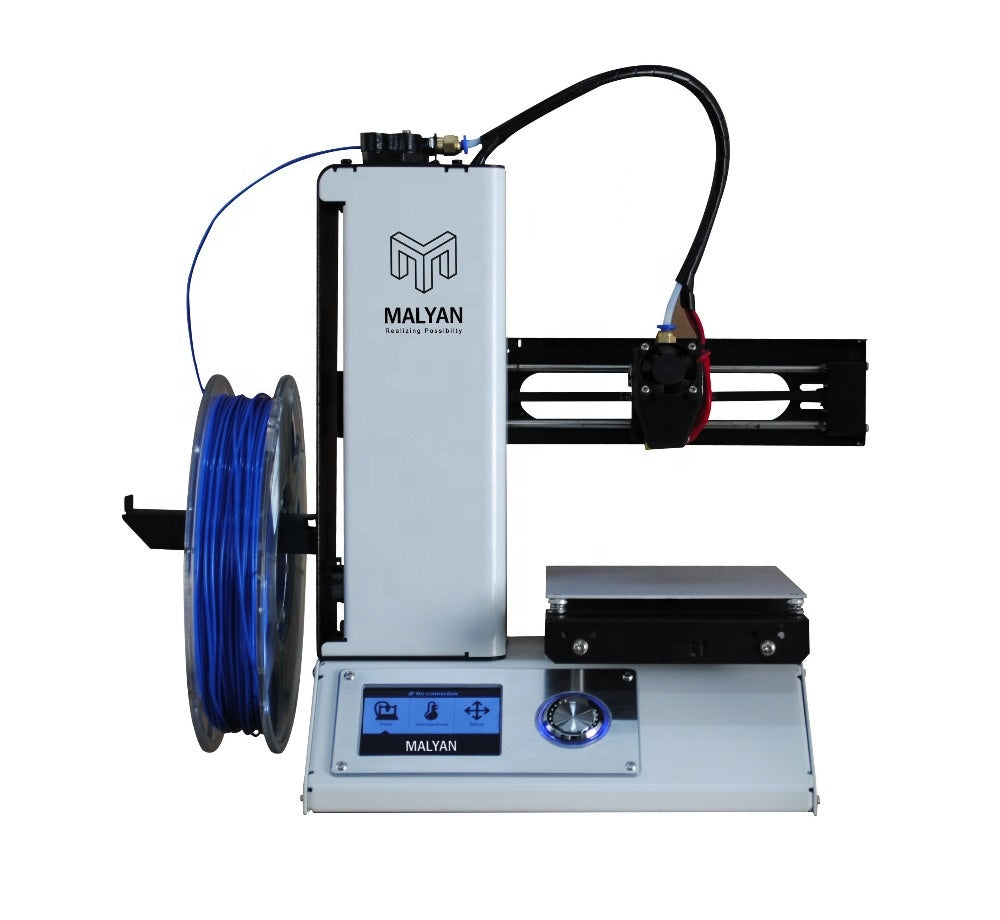

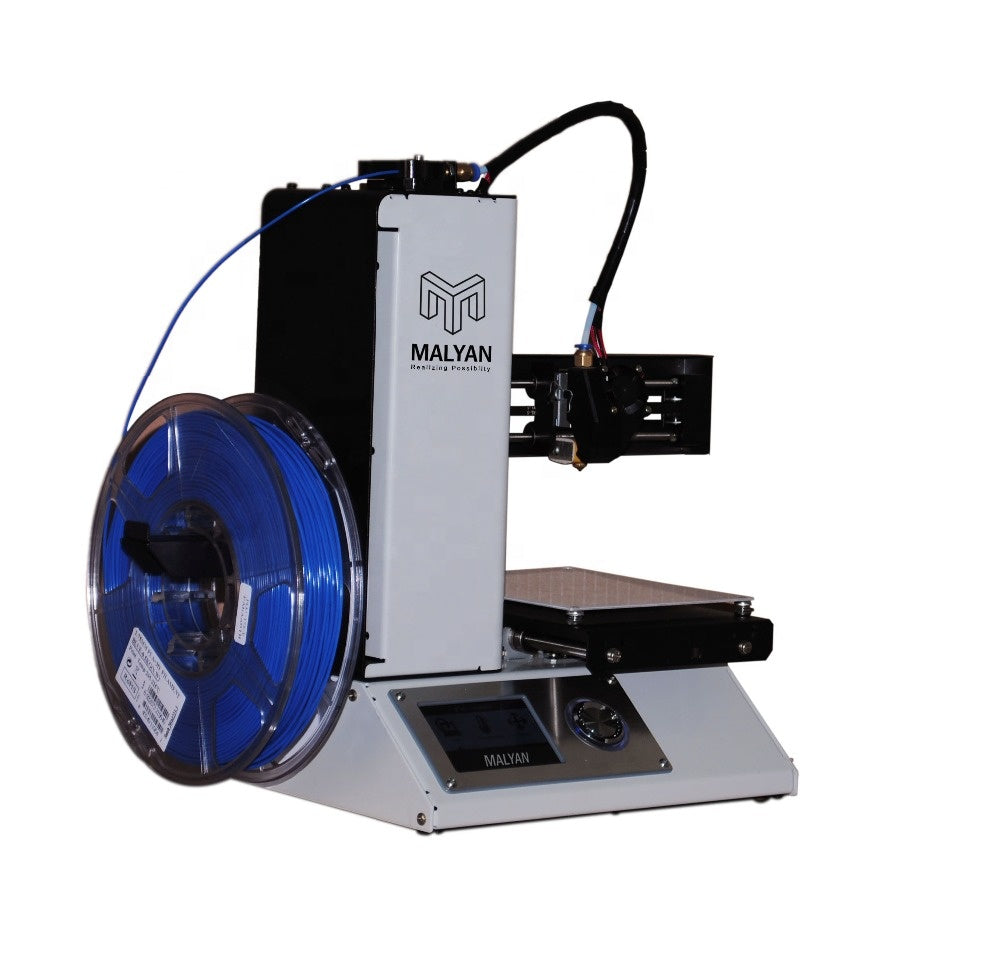

M200 V1 Specifications
Model
M200 V1
Printing Technology
FDM
Extruder Type
Single extruder
Build Area
120 x 120 x 120 mm (4.7 x 4.7 x 4.7 in)
Build Volume
1728 cc (103.8 cu in)
Nozzle Diameter
0.4 mm
Supported Filament Size
1.75 mm
Supported Filament Types
ABS, PLA, wood, copper fill, steel fill, bronze fill
Max Extruder Temperature
250 °C (482 °F)
Max Platform Temperature
60 °C (140 °F)
Max Printing Speed
55 mm/s
Layer Resolution
0.1 mm
Display
Wide viewing angle color LCD screen
Connectivity
Micro USB, MicroSD card
Offline Printing
Yes, from the MicroSD card
Supported File Formats
STL, OBJ
Supported Software
Cura, Repetier-Host
Operating System
Windows 7 and later, macOS, Linux
Max Power Consumption
120 W
AC Adapter Input
100-240 VAC, 50/60 Hz
Input Power
12 VDC
Device Size (H x W x D)
343 x 287 x 190 mm (13.5 x 11.3 x 7.5 in)
Weight
4.5 kg (9.9 lb)
