No Build-Height Limit
The conveyor belt acts as the Z axis, so a job is not capped by the usual build height. Long single pieces and back-to-back batches keep coming off the machine without stopping to clear the plate.

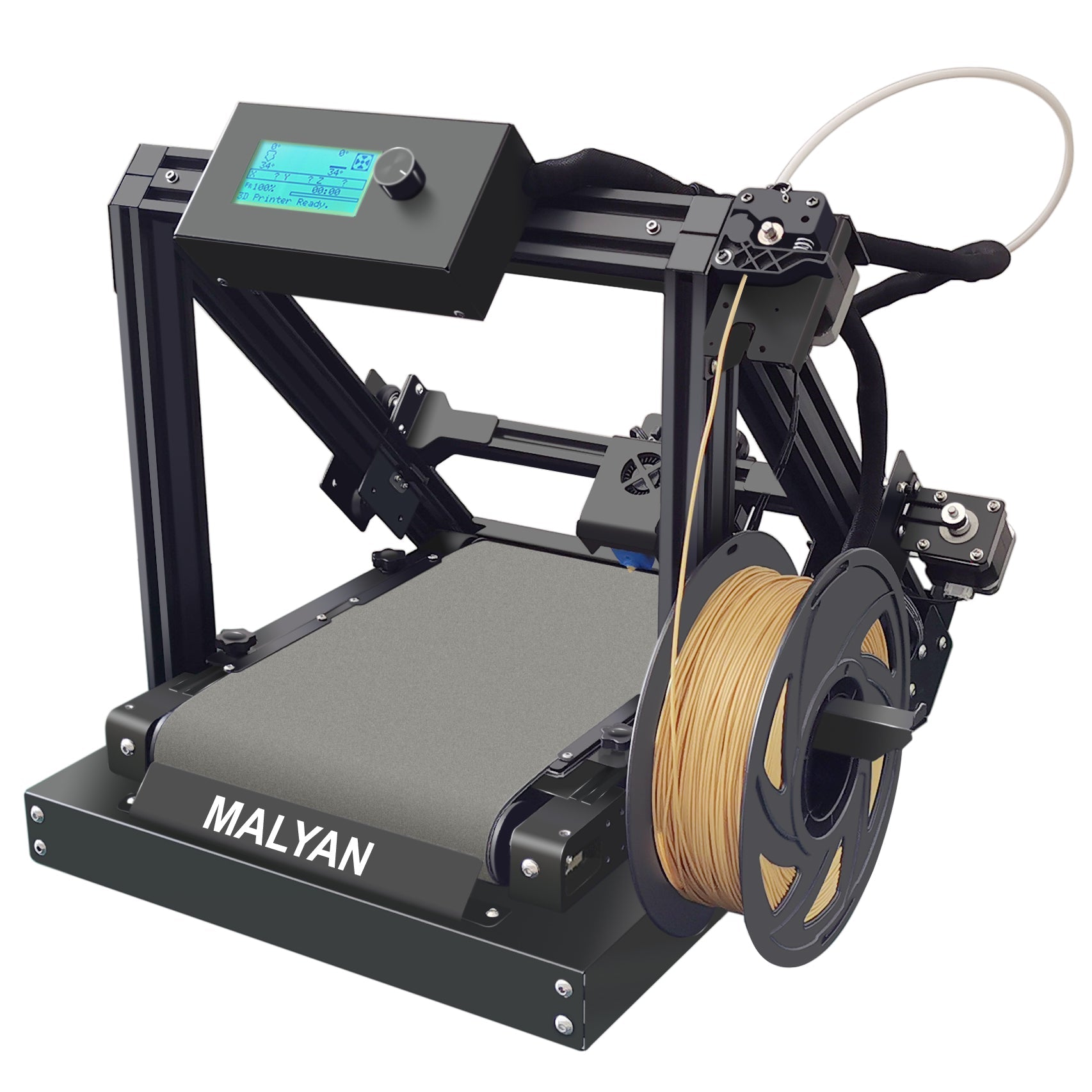

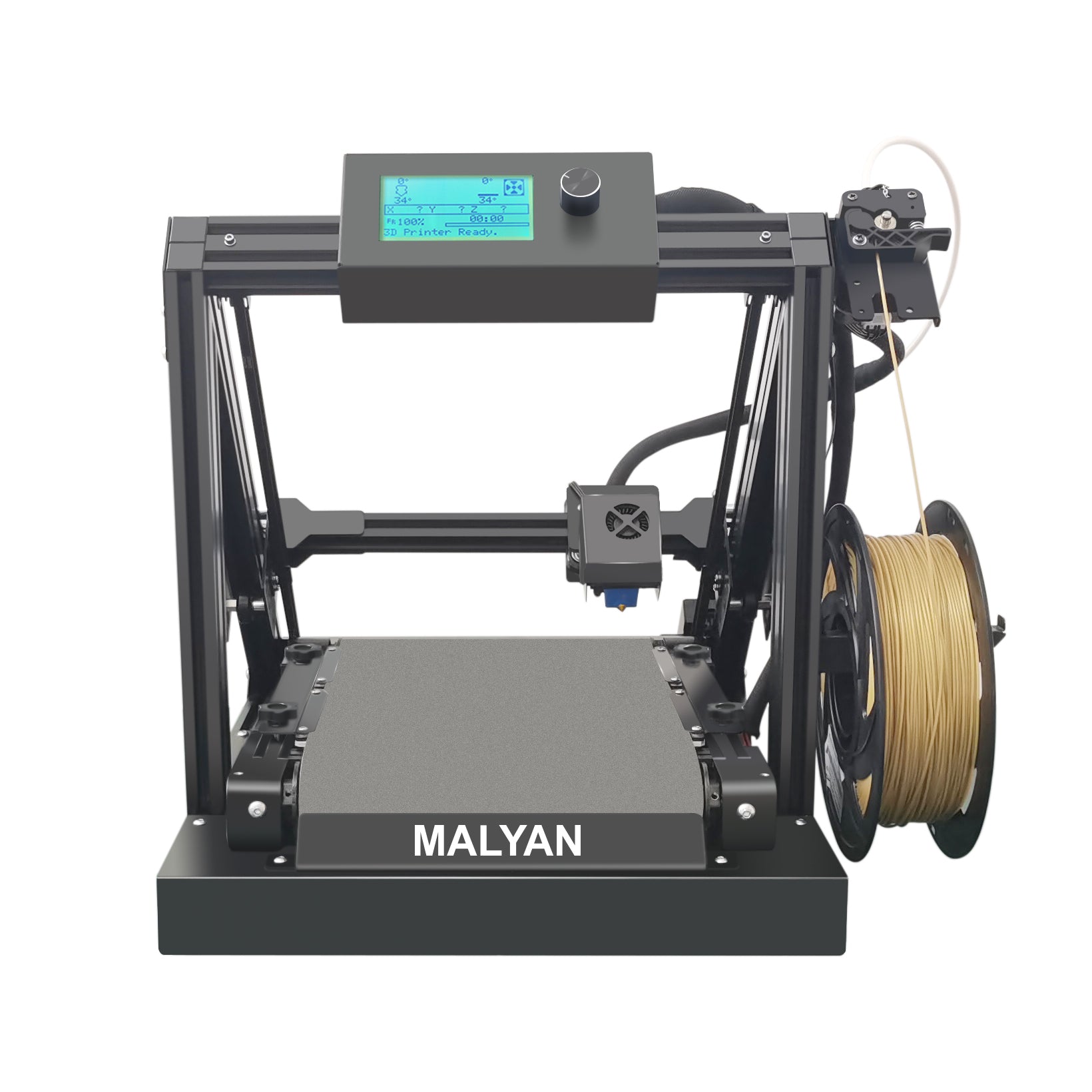

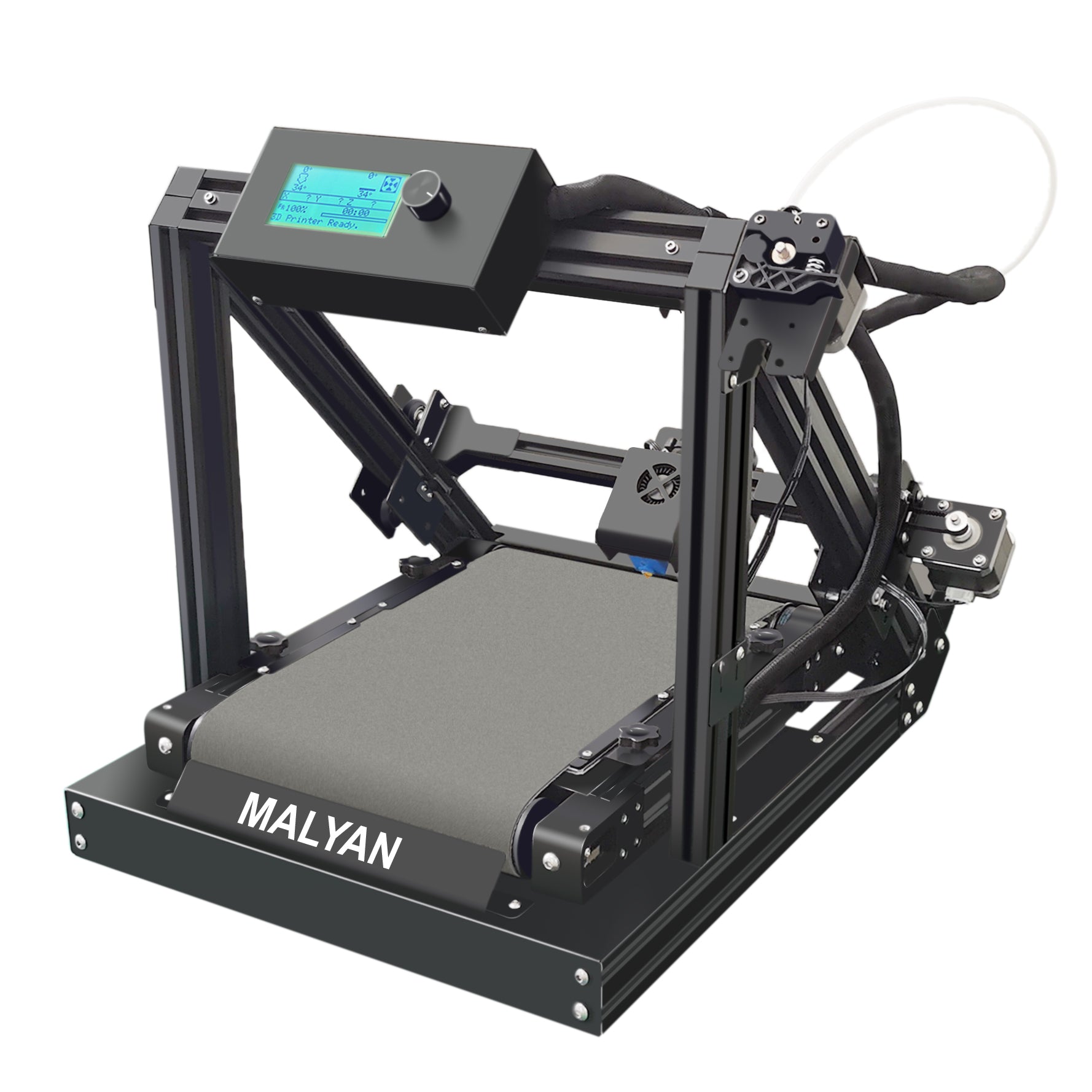

MA21 Highlights
Infinite Z-Axis Belt 3D Printer
MA21 is a semi-assembled FDM belt printer with a 200 x 180 mm cross section and an unlimited Z axis, built for cosplay props, long parts and unattended batch production.
MALYAN Exclusive Belt Surface
MALYAN's own belt is softer and more wear resistant than the canvas belts commonly used elsewhere. Filament grips it more evenly, which improves first-layer adhesion and leaves a smoother finish.
Angled Nozzle For Continuous Output
The 45 degree head angle works around the limits of a vertical nozzle, letting the printer build continuously along a horizontal Z axis.
Finish The Build Yourself
MA21 ships partly assembled. Completing it takes one short session and doubles as a hands-on introduction to how a 3D printer works, which makes it useful for STEM teaching.
Lifetime Technical Support
Every MA21 comes with lifetime technical assistance. Contact us before or after ordering and we will respond within 24 hours.
Technical Details
MA21 Specifications
Model
MA21
Printing Technology
FDM belt printer, infinite Z axis
Max Printing Size
200 x 180 x unlimited mm
Nozzle Diameter
0.4 mm
Filament Diameter
1.75 mm
Printing Accuracy
±0.1 mm
Supported Filament Types
PLA, PETG
Layer Thickness
0.1 - 0.4 mm
Max Extruder Temperature
240 °C
Max Heated Bed Temperature
100 °C
Max Print Speed
Under 100 mm/s, typically 30 - 60 mm/s
Assembly
Semi-assembled kit
Connectivity
MicroSD card, USB Type-C
Supported File Formats
STL, G-code
Slicing Software
Cura, ideaMaker
Operating System
Windows, Linux, Mac
Power Supply
100-120 V / 200-240 V, 50/60 Hz
Weight
12.7 kg (28 lb)
Support / Contact
Need Help With This Printer?
For quotation requests, firmware, software, manuals or product support, contact us and we will respond within 24 hours.
